Hypnos S

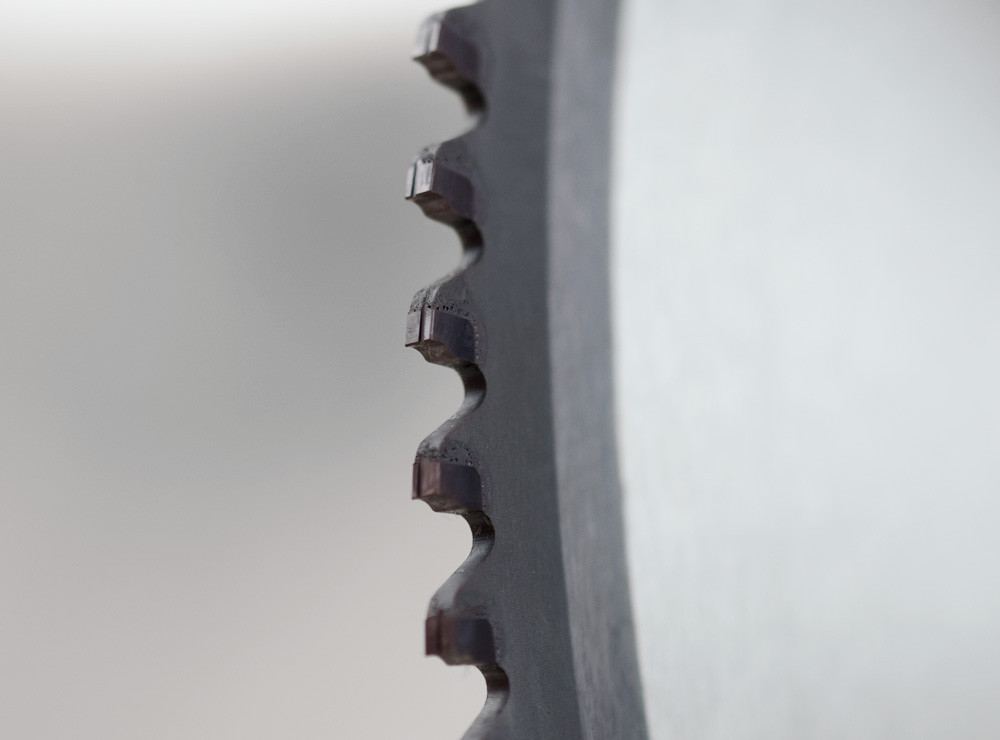

TCT coated circular saw blade for metal cutting. Resharpeable. Specifically designed for tube pipe mills.
Code: 7E5
APPLICATION AREA:
Cutting low, medium and high alloy steel tubes (thin wall) on fly cutting machines.
According to the application is possibile to choose the appopriate type of blade.
Material form
Square tubes
Tubes, thin-walled
Blade type
Machine type
High speed flying cutSpecifiche Tecniche TCT
| Ø | Spessore dente mm | Spessore corpo mm | Bore mm | Z | ||||||||
| 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | ||||
| 350 | 2,7 | 2,4 | 32/40/50 | |||||||||
| 400 | 2,9 | 2,5 | 40/50/80 | |||||||||
| 450 | 2,9 | 2,5 | 50/80 | |||||||||
| 500 | 3,5 | 3 | 50/80/90 | |||||||||
| 525 | 3,5 | 3 | 50/80/90 | |||||||||
| 530 | 3,8 | 3 | 50/80/90 | |||||||||
| 550 | 3,8 | 3,3 | 80/90/140 | |||||||||
| 560 | 3,8 | 3,3 | 80/90/140 | |||||||||
| 600 | 3,8 | 3,3 | 80/90/140 | |||||||||
| 620 | 3,8 | 3,3 | 80/90/140 | |||||||||
| 630 | 3,8 | 3,3 | 80/90/140 |
